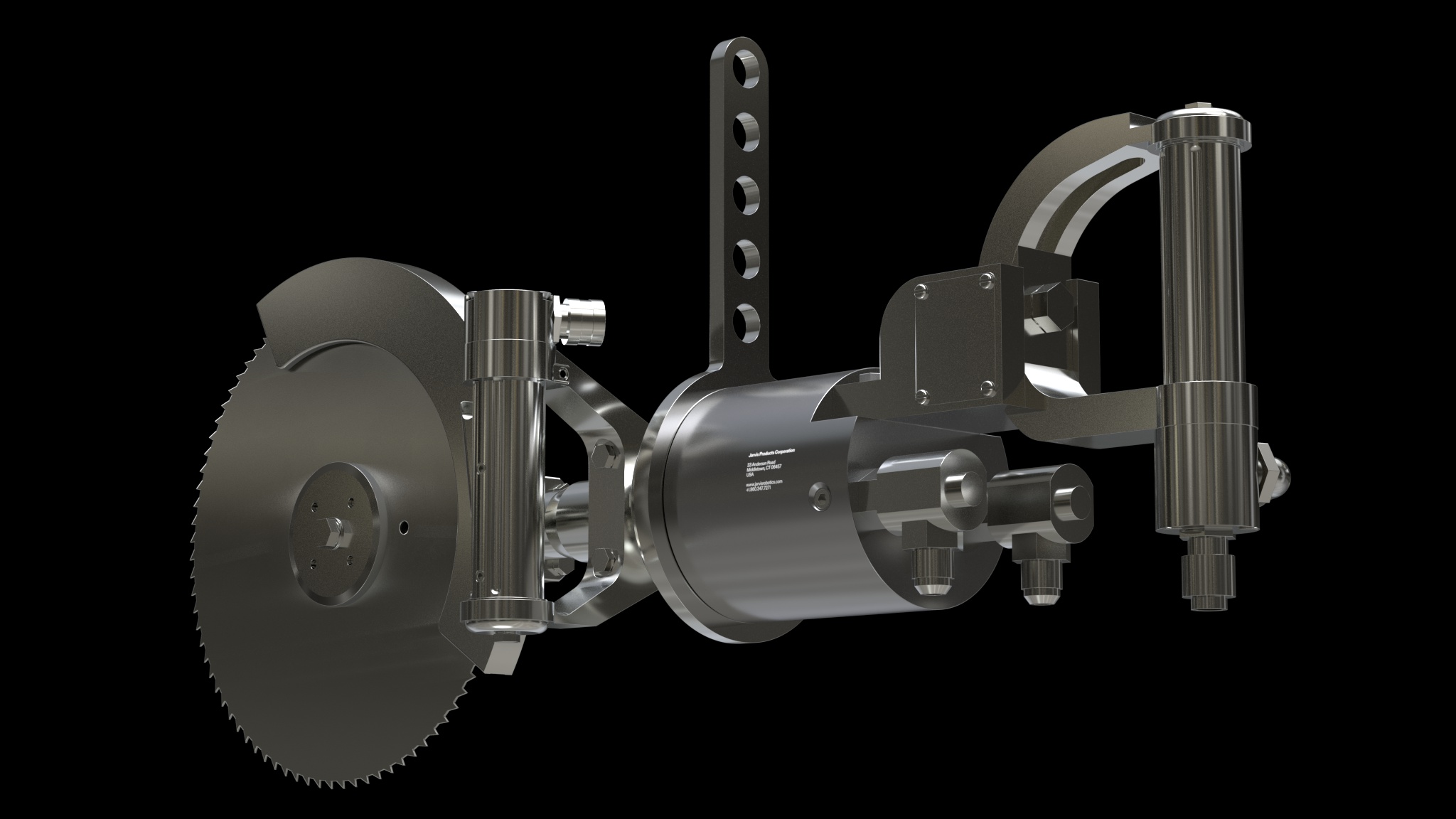

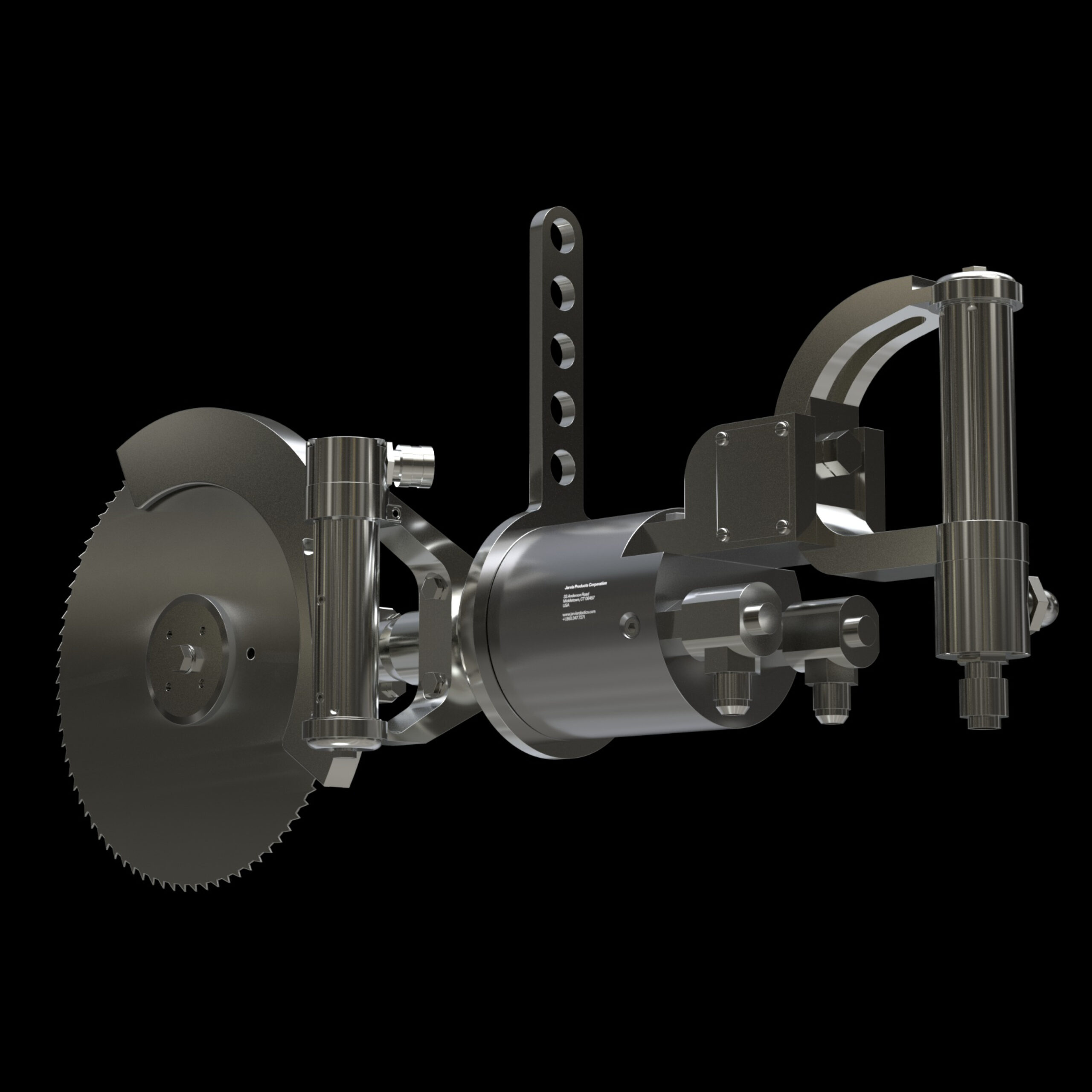

The Jarvis Model 1000-FS hydraulically powered breaking saw.
Maximum horsepower. In a smaller package.
The 1000-FS is suited for high-volume processing of beef chucks, shoulders, ribs, forequarters, chine bones, briskets, loins, and aitchbones as well as pork chine bones and ham marking. Powered by a 4 hp hydraulic motor inside a compact ultra-durable stainless steel housing. Which means no bogging down, no motor icing, low noise, and instant stopping.
More control to the operator. With an adjustable cut depth stop gauge.
Featuring a cut depth stop gauge ranging from 3 to 4.5 inches for maximum control and accuracy cut after cut. The direct-drive motor saves space and further reduces vibration to ensure easy, comfortable handling by the operator. And every saw is specifically designed to meet national and international safety and hygiene requirements.
Electric
Control Handle
Dual Anti-Tie Down
Safety Feature
229 mm (9.0 in), 267 mm (10.5 in), 305 mm (12.0 in)
Blade Diameter
76 mm (3.0 in)
Cutting Depth with 229 mm (9.0 in) Blade
95 mm (3.75 in)
Cutting Depth with 267 mm (10.5 in) Blade
114 mm (4.5 in)
Cutting Depth with 305 mm (12.0 in) Blade
Electric / Hydraulic
Drive
2983 W (4 hp)
Motor Power
230 / 460 V, 3 phase, 60 Hz
Voltage
